Steel cord conveyor belt cutter Portable Hydraulic Cutter for Steel-Cord Conveyor Belt

Name: Steel cord conveyor belt cutter Portable Hydraulic Cutter for SteelCord Conveyor Belt
Brand: Toptempo
Price: 6000.00 USD

China Steel cord conveyor belt cutter Portable Hydraulic Cutter for Steel-Cord Conveyor Belt wholesale

Brand Name : Toptempo

Model Number : TTP-3K

Place of Origin : Qingdao,China

MOQ : 1 SET

Price : USD 6000.00-10000.00 PER SET

Payment Terms : T/T

Supply Ability : 10 SET PER MONTH

Delivery Time : 7-14 days

Packaging Details : Wrapped in plywood box

Name : TTP-3K steel cord belting cutter machine

Weight : 45 KG

Voltage : 3-Phase 110/220/380V

Carrying side : 9mm

Running side : 5mm

Belt thickness : up to 20mm

Drive : Manual

Contact Now

Steel cord conveyor belt cutter

Portable Hydraulic Cutter for Steel-Cord Conveyor Belt,

- able to cut up to ST-2500 belting with steel cords
- light weight design suitable for one man operation
- with hand operated
- manufacturers' standard is acceptable

Steel cord conveyor belt cutter Portable Hydraulic Cutter for Steel-Cord Conveyor Belt

Characteristic:

1. Light weight, convenient for using sulfide work.
2. Manual cutting speed, reduce the workload and improve the production efficiency.
3. The incision level off, without secondary cutting curing operations.
4. Without the power drive, smokeless with no peculiar smell, suitable for underground conveyor belt.
5. Original domestic advanced technology.

Main components:

-Special reducer,

-Special cutting blade up and down

-Mast base

Technical Data:

Model

TTP-3K steel cord belting cutter machine

Item

Specs & Pram

Special gear box

1:16

Special upper cutter blade

Ф196mm

Special lower cutter blade

Ф144mm

Cutting for overall thickness

20.6mm

Cutting for cord diameter

Ф7.5mm

Unit weight

32 KG

Accessories

Item

Specs

QTY

Hex Wrench

4,5,6,10mm

Bidirectional ratchet spanner

3/4’

adjustable spanner

Moon spanner

Steel cord conveyor belt cutter Portable Hydraulic Cutter for Steel-Cord Conveyor Belt

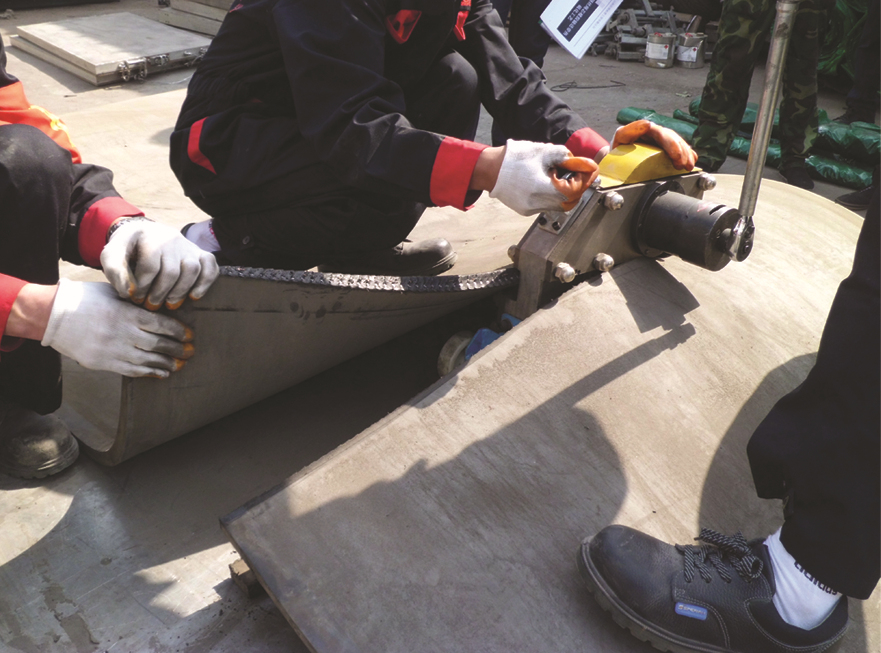

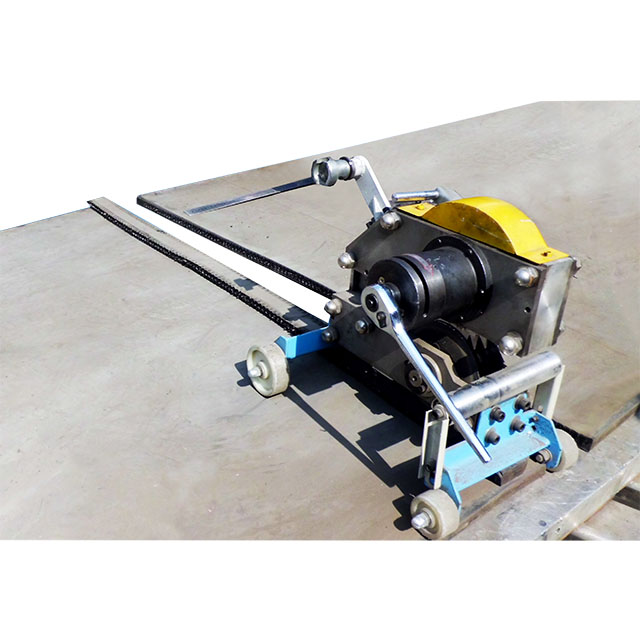

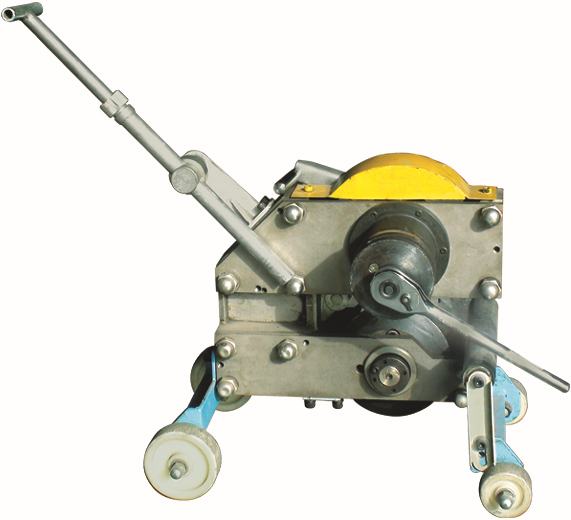

Steel cord conveyor belt cutter Portable Hydraulic Cutter for Steel-Cord Conveyor Belt Images
